Ecosmart Fire Grate 36 Insert

Regular Price
$3,495.00
Sale Price
$3,495.00
Regular Price
Sold Out
Unit Price
Translation missing: en.general.accessibility.unit_price_separator

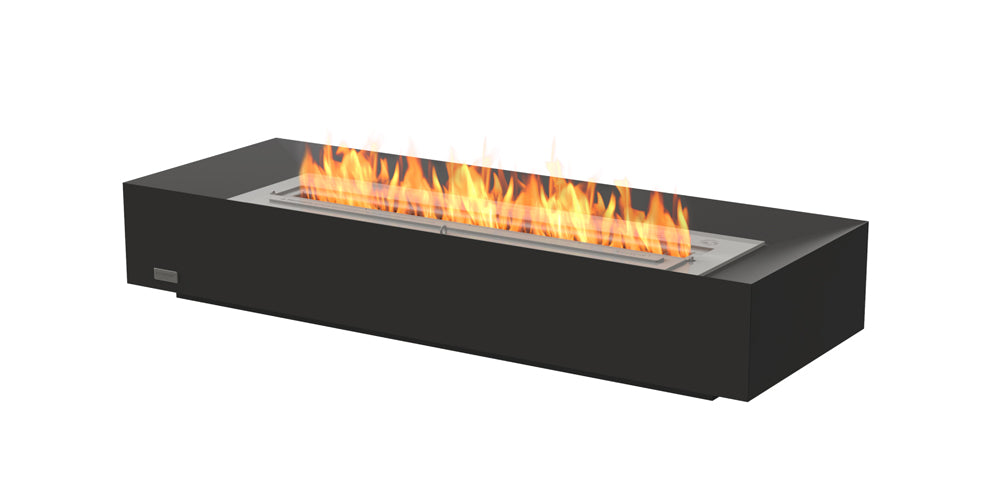

FIREPLACE GRATE 36, A MODERN TAKE ON THE TRADITIONAL

Fireplace Grate 36’s bold appearance and long elegant flame make it the ideal choice for bringing life back to an old unused fireplace.

Designed for those looking to make an impact when designing a fireplace, Grate 36 is sturdily constructed from Fluid Concrete Technology in a modern graphite concrete colour and holds the XL700 Burner.


Features

MINIMUM FUSS

Delivering the ambience of an open fire – but minus the mess, odour, sparks and soot due to the clean-burning, eco-friendly e-NRG bioethanol.

FLUID™ CONCRETE TECHNOLOGY

Our proprietary technology offers a streamlined yet sophisticated system that delivers exceptionally robust, handcrafted products.

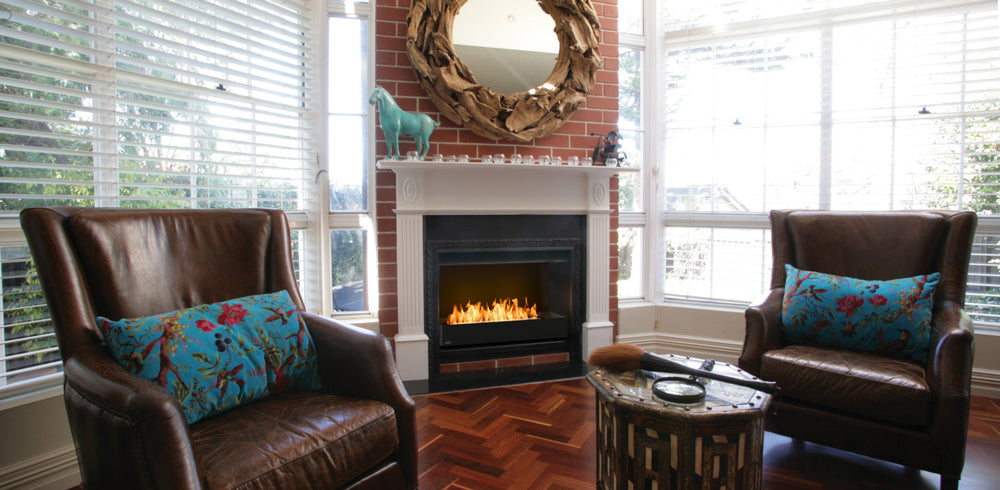

CONVERT AN EXISTING FIREPLACE IN MINUTES

Transforming an existing wood burning fire into a clean-burning ethanol fireplace is easy. Simply attach the grate to a level platform with our easy fitting system and fill it with liquid bioethanol. Then sit back and relax.

OPTIONAL SIZES

The Grate Series is available in three sizes – the smallest, Grate 18 (with AB8 Burner), the Grate 30 (with XL500 Burner) and largest Grate 36 (XL700 Burner).

NO GAS OR ELECTRICITY

All the fuel is housed within the self-contained burner so you don’t have to run pipes or cables through your walls.


Specifications

Compatible Burner
XL700
Volume Capacity 7 Litres
Heats Approximately 50m2
Heat Output 4kW
Burn Time 9-12 Hours
Weight 30kg

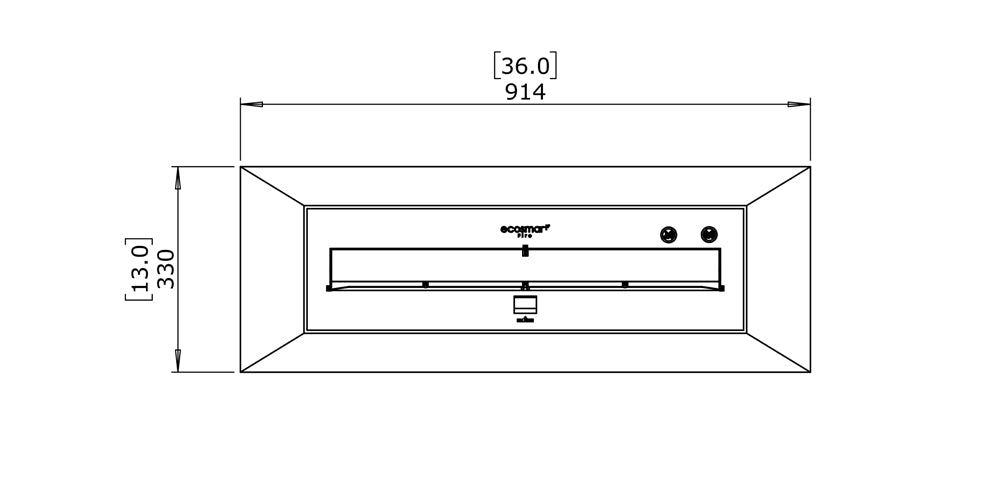

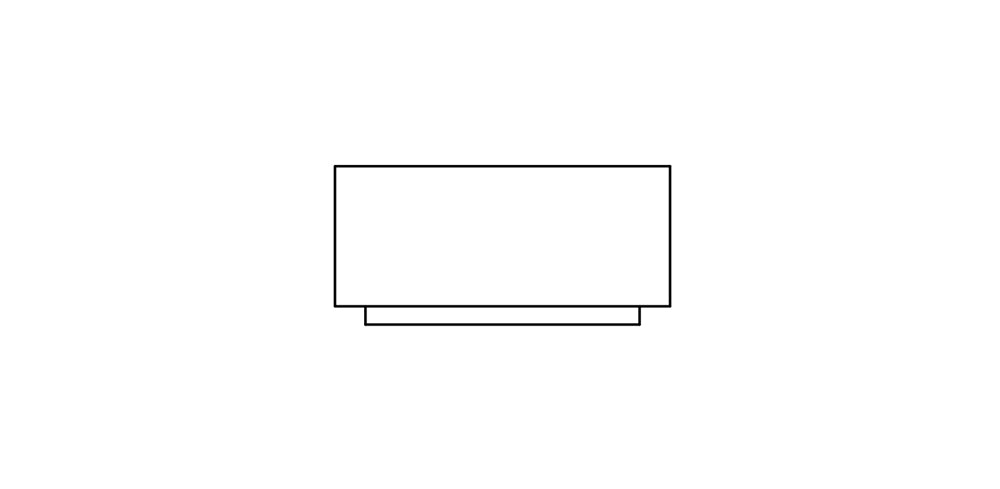

Model Dimensions 914mm (Length)
330mm (Width)

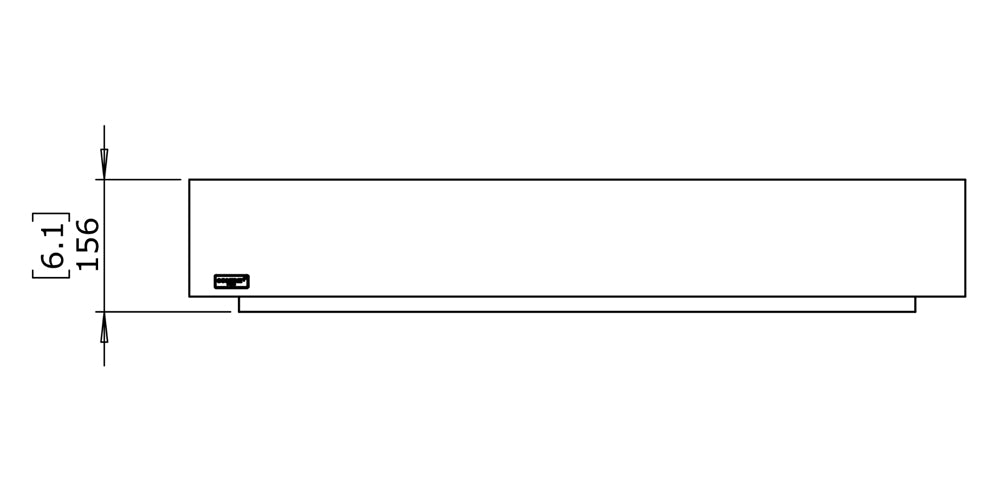

156mm (Height)
Application Indoor
Materials Stainless Steel Grade 304 & Concrete Composite
Colours Black (Granite)
Fuel e-NRG Fuel Sold Separately

Downloads

Ecosmart Grate 36 Insert Spec Sheet

Ecosmart Operations Manual

Ecosmart Burner Installation Manual

Shipping Information
When placing an order, you have 2 shipping options to choose from. To ensure your order is processed without delay, please identify your shipping preference at the time of order along with any special delivery instructions.


Packaging

XL700 Burner
Shipping Weight: 34kg
Packaging Dimensions: 1327mm (Length)
456mm (Width)
301mm (Height)
Cubic Metres: 0.18m3

Standard Delivery

Standard delivery provides ground delivery to the easiest access point on your property and does not include inside delivery, packaging removal, or assembly. Standard delivery is 2-5 business days for QLD, NSW & VIC shipments and 5 - 7 business days for WA, ACT and TAS shipments from the date of dispatch.

For larger items shipping cost includes a tail lift and two-man delivery.

Shipping Notes

An order confirmation following receipt of your order will advise the most accurate Expected Ship Date as known at the time of your order. Should this change in any way, we will contact you directly. Outdoor covers ship for free when shipping with a fireplace or table.

e-NRG Bioethanol may ship separately and may arrive on a different day. An individual tracking number for your e-NRG Bioethanol order will be emailed to you.

Warranty Information

Ecosmart believes in supplying you with the best product and providing you with the means to keep it that way. Many aspects of their products are hand-produced, hand-finished and use natural materials, which makes them subject to variations in finish and size.

All of their pieces will mature and age over the course of time, through natural processes associated with use and with heat and flame. These changes are an essential part of the dynamic of the piece. They reserve the right to make minor amendments without prior notice.

Length of Warranty

Two Year Warranty

Warranty from date of purchase on stainless steel parts including raw, linished and powder coated.

One Year Warranty

Warranty from date of purchase on mild steel including powder coated and chrome plated, cement, glass, leather, fabric and MDF (painted or cement rendered).

Please Note:

Chips and scratches are not covered by warranty. Natural variation in colour, texture and porosity may occur with Concrete Composite products and are considered inherent and valued qualities of the material. Non-structural hairline cracks are possible and shall not be considered a manufacturing defect.



*Additional components may be required to install*

*RRP & Discounted Prices subject to change without notice*

Contact us for a comprehensive quote to suit your needs.

Contact us for a Quote!

It is strongly suggested that you contact us to give you a more definitive price based on the specifics of the installation you are looking to do. There may be factors that you are not aware of or that may require additional components to be safely installed. We will supply you with a quote or estimate that will allow you to accurately budget for your new build or renovation.
